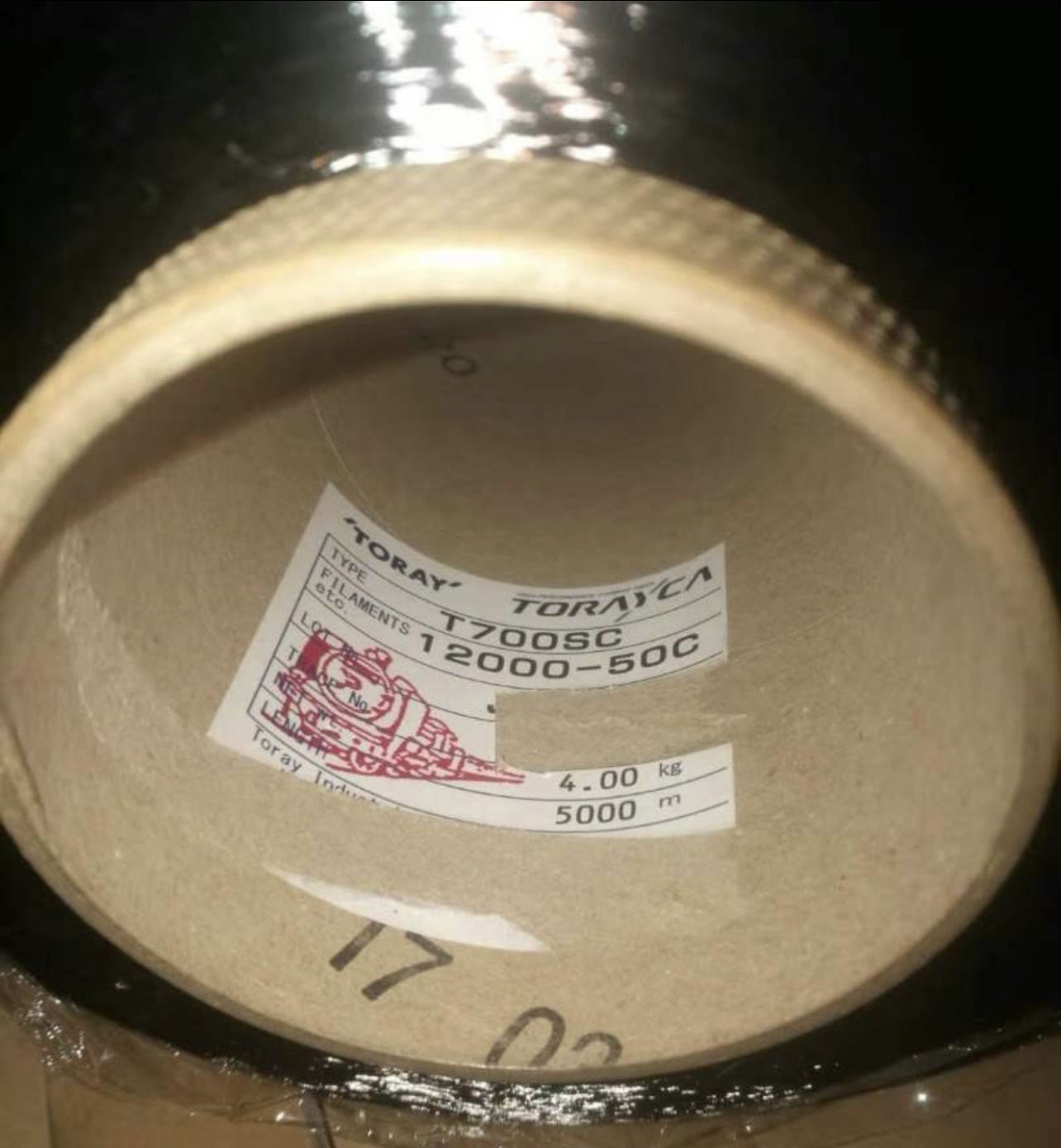

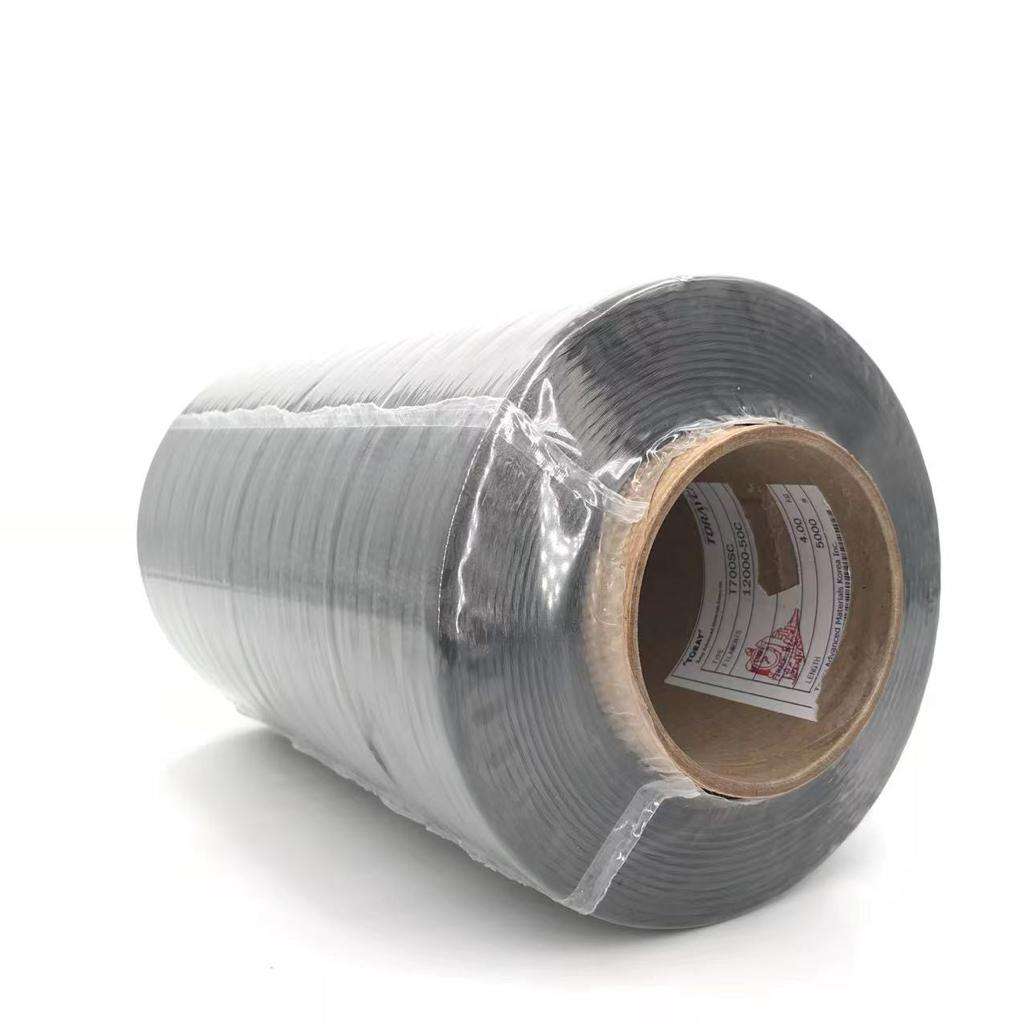

Original TORAYCA Carbon Fiber Yarn T700SC
Product Description:
Premium PAN-based carbon fiber tow featuring outstanding tensile strength, stable modulus, and excellent processing performance. Widely used in filament winding, prepreg manufacturing, pressure vessels, sporting goods, aerospace, marine, and industrial reinforcement applications. The untwisted continuous fiber structure ensures superior resin wet-out and mechanical performance in composite parts.
Applications
- Filament winding
- Pultrusion processing
- Hand lay-up laminating
- Pressure vessels & gas cylinders
- UAV & drone structures
- Sporting goods & industrial components
Resin Compatibility
- Epoxy resin
- Polyester resin
- Vinyl ester resin
Fiber Specification
Material: Torayca® Carbon Fiber Tow
Grade: AA Grade
Fiber Type: T700SC-12000-50C
Filament Count: 12K (12000 filaments)
Production Date: 2020
Technical Parameters
- Density: 1.80 g/cm³
- Tensile Strength: 4900 MPa
- Tensile Modulus: 230 GPa
- Elongation at Break: 2.1%
- Filament Diameter: 7 μm
- Single Tow Cross Section: 0.444 mm²
Packing Information
- Roll Length: 5000M / Roll
- Net Weight: 4KG (8.8 lbs)
- Gross Weight: 9.375 lbs
Features
- High tensile strength and excellent stability
- Fast resin impregnation and smooth processing
- Suitable for high-performance composite manufacturing
- Consistent fiber quality for industrial production
- Ideal for lightweight and structural reinforcement applications
Available Origins
USA / Japan / Korea / China
Available Torayca® Models
T300 / T300B / T400HB / T700SC / T800SC / T800HB
M35JB / M40JB / M46JB / M50JB / M55J / M55JB / M60JB
Available filament counts include:
1K / 3K / 6K / 12K / 24K / 48K
Custom packaging and OEM services available. Contact us for the latest stock and technical support.
