Carbon Fiber Sheet/Plates

carbon-fiber-sheet

Can’t find what you are looking for?

Request a Quote

              Carbon Fiber Sheet/Plates Specification

                         Item Dimension Thickness
3K Carbon Fiber Sheet/Plates 400×500 mm From 0.2mm to 20mm
500×500 mm
500×600 mm
500×1000 mm
1000×1000 mm
1000×1200 mm
1200×1200 mm
1000×1400 mm

Carbon Fiber Sheet/Plates

Finish: Glossy & Matte

Weave: Plain & Twill

Appearance: normally use 3k .can do 1K 1.5K,6k 12k As per customer request  Plain or Twill weave.

Description

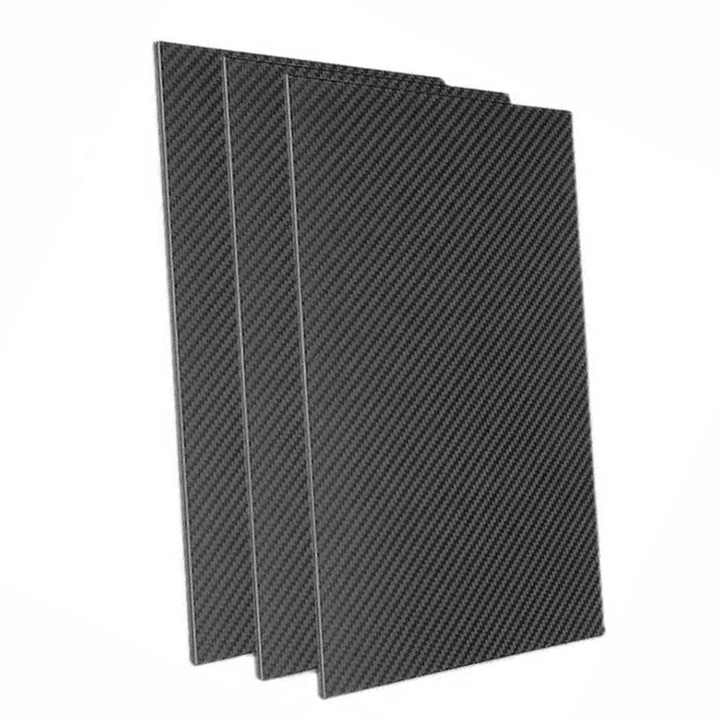

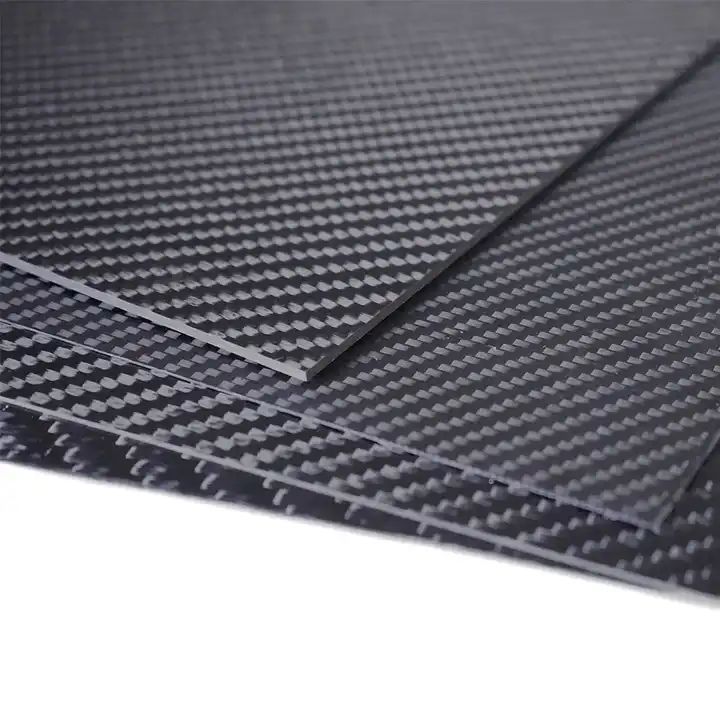

3k carbon fiber sheet has extremely high strength, light weight, with shiny and clear appearance, widely used for model helicopter parts and hobby market and industry use.

It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 50mm, customized thicknesses and sizes are available.
Stand for a complete solution, we supply full size to the pre-cut panel, as well as CNC machined parts to your specification.

CNC Service

CNC Service is available, According to customers design, the drawing (DWG&DXF Format) customized Carbon Fiber Parts for RC Helicopter, RC cars, UAV Drone frame, Carbon fiber tubes and other carbon fiber products.

CNC Cuttingcnc cutting

The Test And Results

Surface density: 2000g/m2

Resin content: 42%

Fiber content: 1050g/m2

Fiber volume content: ≥65%

Thickness: 1.3±0.05mm

Density: 100±2mm

Tensile strength: 2950/N/mm2

Modulus of elasticity: 185000N/mm

Application

Carbon fiber sheet/Plates is widely used in all kinds of metal accessories, leather goods, pens, notebooks, jewelry, furniture and other surface decoration.
high-end sports equipment and surface decoration, cell phones, portable computers, aircraft models, car models, etc

Features

  • high tensile strength and ray penetration
  • abrasion and corrosion resistance
  • high electric conductivity, soft and free to cut
  • light weight, easy to construct and little increasing the weight on constructed based material
  • high elastic modulus
  • wide temperature range
  • type: 1K, 3K, 6K, 12K
  • good surface, factory price
