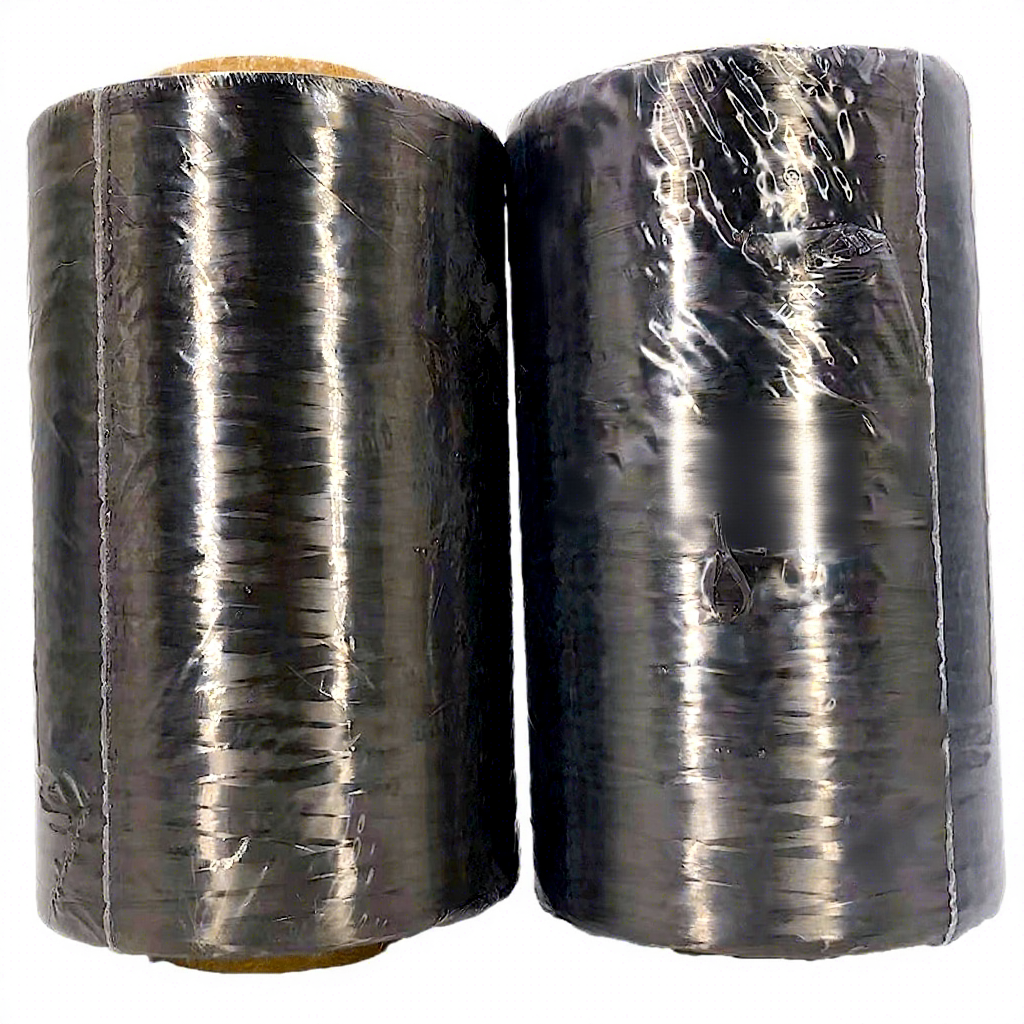

Mitsubishi Chemical 100% Genuine High Modulus Carbon Fiber Tow
Product Description:
Mitsubishi Chemical manufactures both PAN-based and pitch-based carbon fiber materials. offer a variety of high-quality carbon fiber tow, including ultra-high strength (MR70 12P) and ultra-high modulus (K13D2U) materials. The raw material fiber (precursor) for PAN-based carbon fiber is made using polyacrylonitrile (PAN) as a raw material. The raw PAN is polymerized utilizing Mitsubishi Chemical’s unique expertise in polymer synthesis and polymer processing technologies and then spun.
The raw material fiber for pitch-based carbon fiber is produced by obtaining coal tar pitch from coal utilizing Mitsubishi Chemical’s longstanding knowledge of coal chemistry, processing the pitch using an original process, and finally spinning the pitch.
Carbon fiber tow is produced by carbonizing these raw fibers in a highly controlled environment.
Applications
- Pressure Vessel
- Construction Reinforcement
- Carbon Carbon Composite Material
- Sports Leisure
- Automotive Industry
- Aireraft Industry
Resin Compatibility
- Epoxy resin
- Polyester resin
- Vinyl ester resin
Advantages
- High Strength
- High Elasticity
- Fatigue Resistance
- Light Weight
- Chemical Stability
- Corrosion Resistance
- Thermal Stability
- Conduetivity
Technical Parameters
PYROFIL TM
| Fiber Type | Filament Count | Filament Dia (μm) | Tensile Modulus (GPa) | Tensile Strength (GPa) | Yield (mg/m) | Density (g/cm³) |
|---|---|---|---|---|---|---|
| TR 30S 3L | 3,000 | 7 | 235 | 4.12 | 200 | 1.79 |
| TR 50S 6L | 6,000 | 7 | 235 | 4.90 | 400 | 1.82 |
| TR 50S12L | 12,000 | 7 | 235 | 4.90 | 800 | 1.82 |
| TR 50S15L | 15,000 | 7 | 235 | 4.90 | 1,000 | 1.82 |
| TR 50D12L | 12,000 | 7 | 235 | 5.00 | 800 | 1.82 |
| TRH50 18M | 18,000 | 6 | 250 | 5.30 | 1,000 | 1.82 |
| TRH50 30M | 30,000 | 6 | 255 | 5.60 | 1,670 | 1.82 |
| TRH50 60M | 60,000 | 6 | 250 | 4.83 | 3,200 | 1.81 |
| TRW40 50L | 50,000 | 7 | 240 | 4.12 | 3,750 | 1.81 |
| MR 60H 24P | 24,000 | 5 | 280 | 5.68 | 960 | 1.81 |
| MR 70 12P | 12,000 | 5 | 324 | 7.00 | 415 | 1.82 |
| HR 40 12M | 12,000 | 6 | 375 | 4.41 | 600 | 1.82 |
| HS 40 12P | 12,000 | 5 | 425 | 4.61 | 430 | 1.85 |
GRAFIL TM
| Fiber type | Filament count | Filament dia (μm) | Tensile modulus (GPa) | Tensile strength (GPa) | Yield (mg/m) | Density (g/cm³) |
|---|---|---|---|---|---|---|
| 34-700 | 12,000 | 7 | 234 | 4.83 | 800 | 1.80 |
| 34-700 | 24,000 | 7 | 234 | 4.83 | 1,600 | 1.80 |
| 37-800 | 30,000 | 6 | 255 | 5.52 | 1,675 | 1.81 |
| 34-600 | 48,000 | 7 | 234 | 4.48 | 3,200 | 1.80 |
DIALEAD TM
| Fiber type | Filament count | Tensile modulus (GPa) | Tensile strength (GPa) | Yield (mg/m) | Density (g/cm³) | Thermal conductivity (W/mK) | Electrical Resistivity (μΩ·m) |
|---|---|---|---|---|---|---|---|
| K1352U | 2,000 | 620 | 3.60 | 270 | 2.12 | 140 | 6.6 |
| K1392U | 2,000 | 760 | 3.70 | 270 | 2.15 | 210 | 5.0 |
| K13C2U | 2,000 | 900 | 3.80 | 275 | 2.20 | 620 | 1.9 |
| K13C6U | 6,000 | 900 | 3.60 | 760 | 2.18 | 580 | 2.0 |
| K13D2U | 2,000 | 935 | 3.70 | 365 | 2.20 | 800 | 1.5 |
| K13312 | 12,000 | 420 | 3.20 | 1,550 | 2.05 | 110 | 8.0 |
| K63712 | 12,000 | 640 | 2.60 | 2,000 | 2.12 | 140 | 6.6 |
| K13916 | 16,000 | 760 | 3.00 | 2,200 | 2.15 | 200 | 5.1 |
| K63A12 | 12,000 | 785 | 2.60 | 1,950 | 2.15 | 220 | 4.7 |

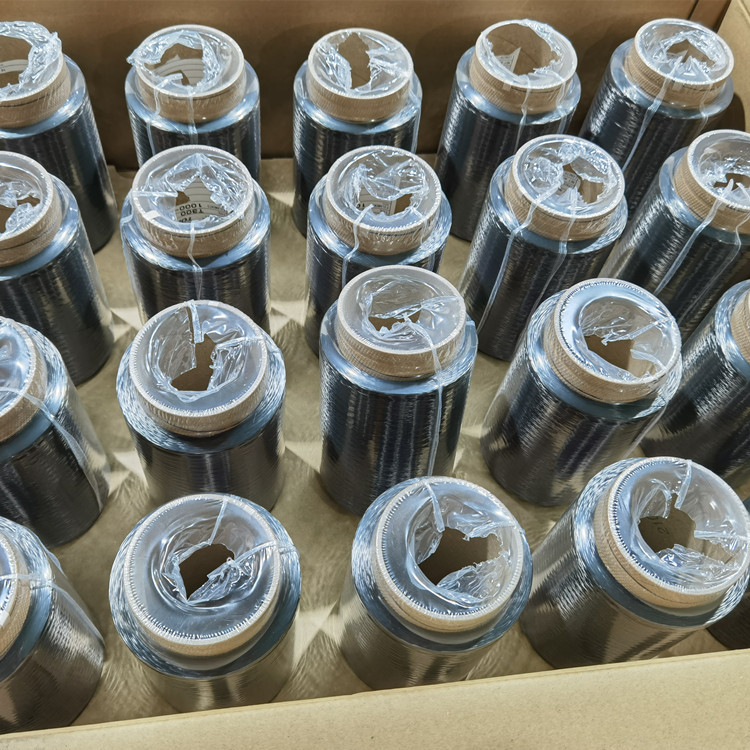

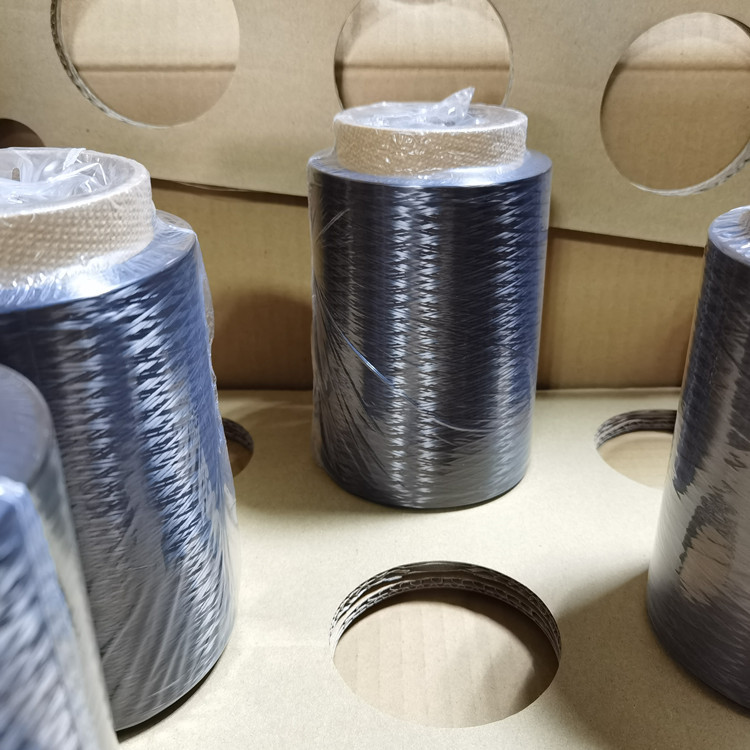

Packing Information
- Roll Length: 5000M / Roll
- Shipping Term: Express/By sea/By air
- Packaging:1 roll=4kg,1 carton=6 rolls=24 kg
Features
- High tensile strength and excellent stability
- Fast resin impregnation and smooth processing
- Suitable for high-performance composite manufacturing
- Consistent fiber quality for industrial production
- Ideal for lightweight and structural reinforcement applications
Custom packaging and OEM services available. Contact us for the latest stock and technical support.
