Carbon Fiber Bi-Directional Fabric

Carbon Fiber Bi-Directional Fabric

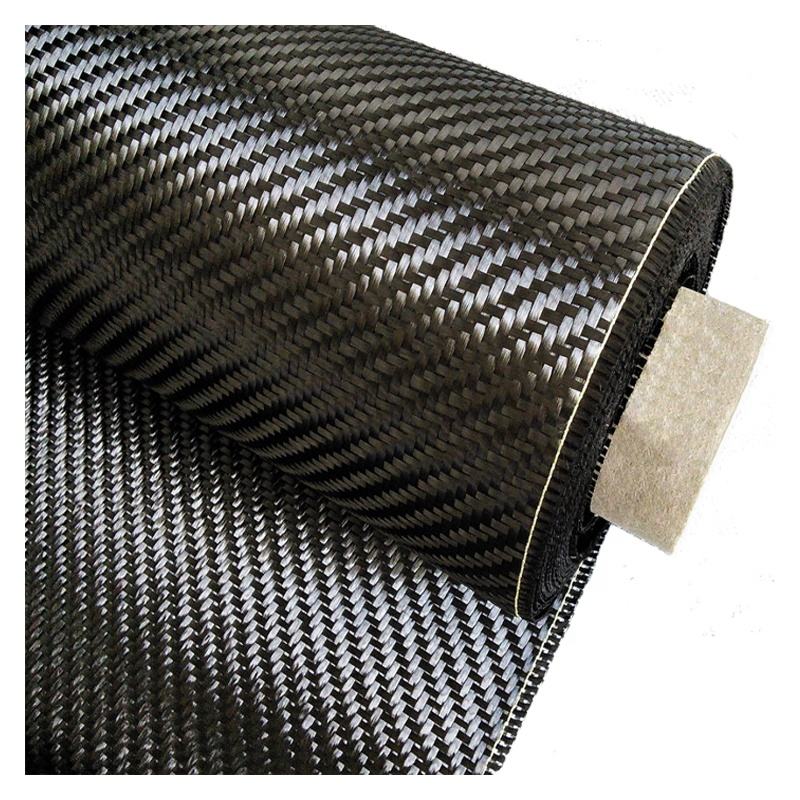

Carbon Fiber Bi-Directional Fabric, manufactured from high-strength carbon fiber tows, is precision-woven with fibers oriented at 0°/90° or ±45° angles to provide balanced reinforcement in two directions . It delivers excellent tensile strength (up to 2,900 MPa in Toray BT70 series), high torsional resistance, and superior flexibility for complex mold shapes . Available in plain or twill weaves with weights ranging from 200 g/m² to 450 g/m², it ensures consistent resin impregnation and reliable composite processing . Ideal for structural strengthening, seismic retrofitting, automotive components, aerospace parts, wind energy blades, and high-performance sporting goods

Can’t find what you are looking for?

Carbon Fiber Bi-Directional Fabric Datasheet

Model No. Style Width (mm) Density (ends/cm) Thickness (mm) Weight (g/㎡) Length (m) Re-mark
01 Plain 1000 9 (Warp) / 9 (Weft) 0.12 120 100 1K
02 Plain 1000 10.5 (Warp) / 10.5 (Weft) 0.14 140 100 1K
03 Plain/Twill 1000 5 (Warp) / 5 (Weft) 0.20 200 100 3K
04 Plain/Twill 1000 6 (Warp) / 6 (Weft) 0.24 240 100 3K
05 Jacquard 1000 6 (Warp) / 6 (Weft) 0.24 240 100 3K
06 Jacquard 1000 7 (Warp) / 7 (Weft) 0.28 280 100 3K
07 Plain/Twill 1000 4 (Warp) / 4 (Weft) 0.38 320 100 6K
08 Plain/Twill 1000 4.5 (Warp) / 4.5 (Weft) 0.4 360 100 6K
09 Plain 1000 2.5 (Warp) / 2.5 (Weft) 0.40 400 50 12K
10 Plain 1000 3 (Warp) / 3 (Weft) 0.48 480 50 12K
11 Plain 1000 4 (Warp) / 3.3 (Weft) 0.58 585 50 12K
12 Plain 1000 3.8 (Warp) / 3.7 (Weft) 0.60 600 50 12K
13 Twill 1000 4 (Warp) / 3.3 (Weft) 0.58 585 50 12K
14 Twill 1000 3.8 (Warp) / 3.7 (Weft) 0.60 600 50 12K
15 Twill 1000 4 (Warp) / 4 (Weft) 0.64 640 50 12K
16 UD 500 2.5 (Warp only) 0.2 200 100 12K
17 UD 500 3.7 (Warp only) 0.3 300 100 12K
